Cassava Starch|Manioc|Tapoica Starch Machine

Video: Cassava Starch Processing Machine

1 Cassava receiving, transporting and cleaning machine
Store the cassava in storage pool. Then the de-stone machine will remove the dirt and other foreign matters completely. Finally, store the clean cassava in a temporary storage hopper.

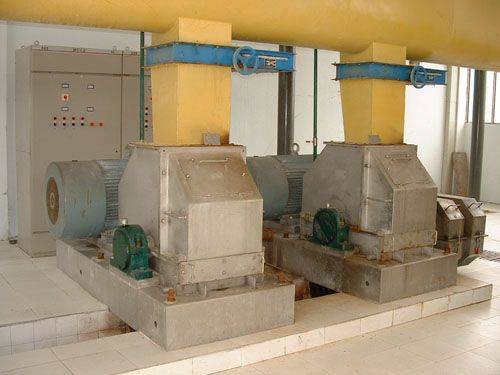

2 Cassava rasping machine
The rasping unit is the most important part of cassava starch extraction. Rasping mill with high efficiency allows the starch granules in the cassava cells to be released out completely, which ensures minimum quantity of the remaining starch in the cassava residue. The rasping cassava slurry is pumped into de-sanding unit by a fiber pump.



3 De-sanding machine
Rasping cassava slurry is pumped through the fiber pump into the de-sanding cyclone. When the slurry enters de-sanding cyclone, the light phase of starch and cassava residue come out of the top as overflow, and the heavy phase like sands will be discharged from the bottom.

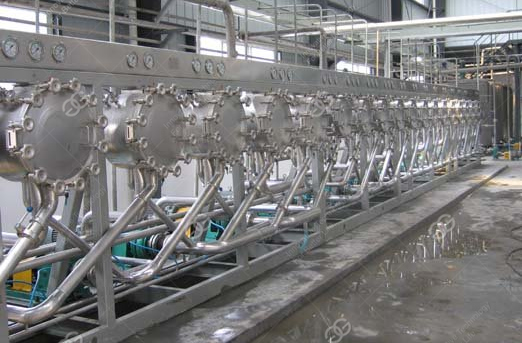

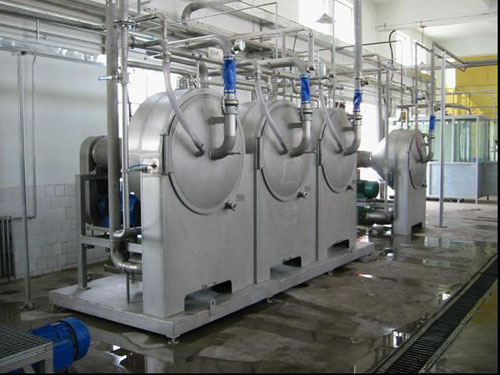

4 Starch extracting machine
Centrifugal extraction is another key unit which influences the cassava starch yields. The cassava slurry enters the first stage centrifugal sieve from de-sanding cyclone, the slurry is separated into starch slurry and cassava residue under the centrifugal force. Starch slurry is pumped through the de-foaming pump to the hydro-cyclone station for washing starch, and the cassava residue is sent to second and third grade centrifugal sieves through fiber pump for starch recovery.



5 Cassava de-watering and drying machine
We use a centrifugal sieve for cassava residue dewatering, it works like the extraction sieve. Finally, cassava residue is transported out of the workshop, the extracted water return to the process water system.



Related Products:Potato Starch Machine

Cassava Starch Production plant with capacity 500kg/h
	Name	Model	Qty	Note

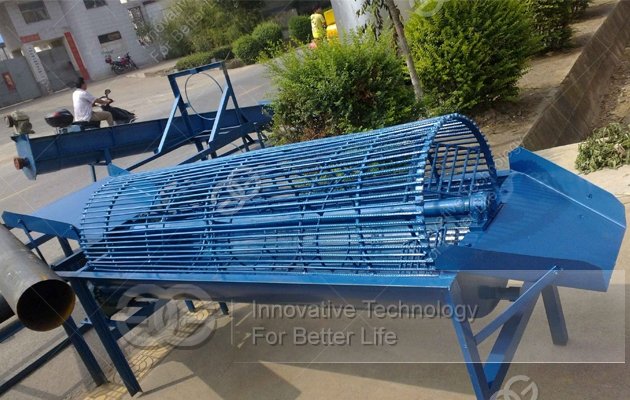

1	Cage model cleaning machine	GG-4000*800	1	3kw,carbon steel material
2	Automatical feeding model cleaning machine	GG-500*3700	1	3KW,carbon steel material
3	Hammer Crusher	GG-520C	1	18.5kw,carbon steel material Capacity: 3-4t/h (cassava)
4	Cylinder separating machine	GG-450B	3	4kw*3=12kw,carbon steel material
5	Litter cleaning machine	GG-CX-4	1	2.2kw,stainless steel
6	Conveyor	GG-380*4000	2	2.2KW,carbon steel material
7	Rotation flowing model separating machine	GG-1	1	35KW,carbon steel material

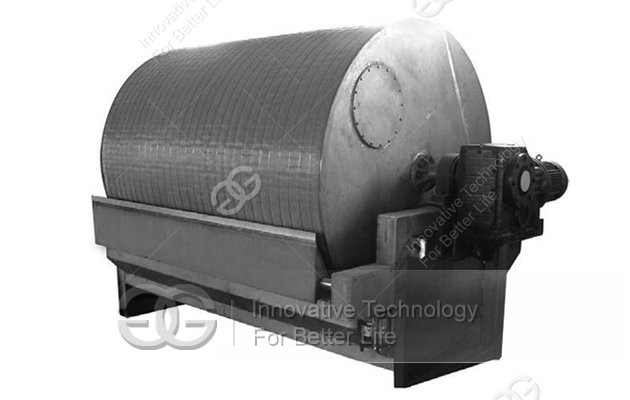

8	Vacuum Dewatering machine	GG-TS-C	1	15KW filtering area: 12 m2

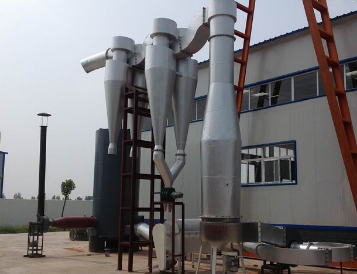

9	Drying machine	GG-B	1	25KW,carbon steel material  Coal consuming:30kg/h
