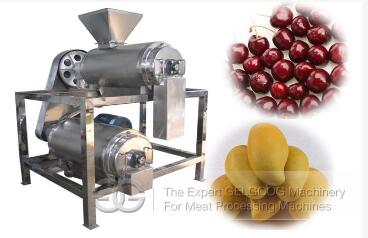

Mango Corer And Grinding Machine is with some features. Motor through the triangle belt transmission that is installed on the spline shaft of scraper high-speed rotation, when after the broken fruit through the inlet into the machine, slurry retaining plate of row material evenly to scraper and between the screen mesh.

Due to the effect of rotation of the scraper and the existence of the lead Angle, make the material along the tube to the outlet of a moving trajectory spiraling, screen mesh material on the scraper and the effect of the centrifugal force in the process of moving and be chopped, juice and meat is (slurry) from mesh through into the next process (double way pulper for linkage) repeat the above process, such as the skins and seeds from slag discharge, thus achieve the goal of automatic separation.As long as the different specifications of the mesh screen and adjust the size of the scraper lead Angle, it can change different beating speed, obtained satisfactory results.


Taken the first check before driving in various parts of rotor motor are the connection between the firm and reliable whether to sign the agreement, to both ends of bearing in 20 machine oil, turn the handwheel clockwise, before locking cylinder cover, can drive;Then added to the material do not impact.According to the condition of pulp out slag concrete, properly adjust the scraper spiral Angle and the clearance between the screen mesh and scraper, slag juice content meet the process requirements.Parking: turn the handwheel counterclockwise, the motor stop running after, to total brake.

When u did not stop running when the rotor, do not open the front cover.


After per shift work, the Mango Corer And Grinding Machine must be cleaning and maintenance time, in order to prevent the material part and ferment inside the machine and lubrication oil loss.When cleaning, before open the cylinder cover, back off at the end of the spline tighten screw, can easily take out the rotor parts, screen mesh can be directly removed.
