Fruit & Vegetable Machine
- Wet Type Peanut Peeling Machine
-
- MOQ: 1 set/Sets
- Brand:GELGOOG
- Certification:CE
- Supply Ability: 80 sets per monthSet/Sets Per Month
- PAY METHOD:WEST UNION L/C T/T CASH
- Warranty Time:6 Months
- LOADING PORT:Qingdao Port/Tianjin Port
- Country Of Origin:China
- Features
- Technical Data
- FAQ
- Case
- Certification

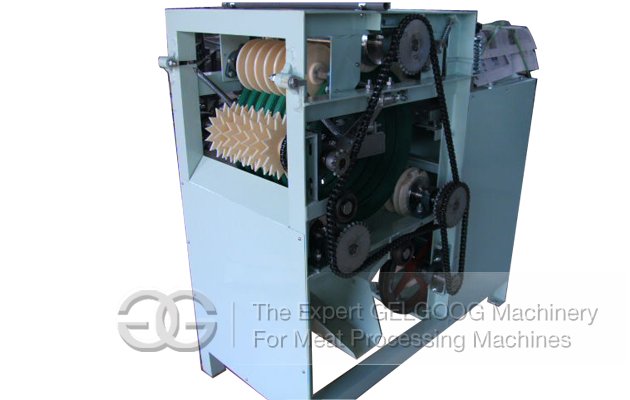

Wet Type Peanut Peeling Machine is mainly used to peel peanut (groundnut).
We also supply Dry Type Peanut Peeling Machine for your selection.
We also supply Dry Type Peanut Peeling Machine for your selection.
1.Working Principle
The soaked rice, beans, benevolence into the hopper by shaking the raw material into three fixed-powered roller tire rotation, through the induction of the feed wheel role knife by the blade on the raw skin incision, then the material round after peeling the rice, benevolence, beans pressed into the hopper and the hopper discharge, through the rejection leather jacket thrown round.
2.Installation and Commissioning
Mounted on flat ground, ground screw fixation, or more than 10mm legs padded rubber mats.
Required by the electric motor, the power is on, tap the switch, check the direction of rotation is correct (see the rotation direction of the V-belt big wheel mark), add water after the power is turned on, the machine is running five minutes after the start of work (the machine must be kept for too long the correct direction of rotation by hand one to two laps before turning the boot)
3.Note
1）Non-inversion
2）Equipment must be installed the ground wire
3）All parts of the screws should be firmed again before the new machine turn on,especially the parts of the set screws should be pay more attention to
4）Bearings must be greased once a week
5）Should to keep the machine clean and do the cleaning periodical.
| Model | GGT-8 | GGT-11 |
| Voltage | 380V 50HZ | 380V 50HZ |
| Power | 0.75KW | 0.75KW |
| Peeling Rate | 96% | 96% |
| Capacity | 150-160kg/h | 200-220kg/h |
1.Ask:Which material can be processed by this machine?
Answer:This machine used for peanut,almond,soybean,broad bean etc.
2.Ask:What are the vulnerable parts of the machine?
Answer:The rubber roll is the vulnerable part of the machine.
3.Ask:How long of the stock up period?
Answer:Usually,our stock up period is 7 working days.
4.Ask:How long of the guality guarantee period?
Answer:Our guarantee period is 1 year.But if you experience any problems within or beyond this period,we will supply high quality sale service for you.
