Smoke Oven

Smoke Oven/Sausage Oven/Meat Oven
  • MOQ: 1 set/Sets
  • Brand:GELGOOG
  • Certification:CE
  • Supply Ability: 300 setsSet/Sets Per Month
  • PAY METHOD:WEST UNION L/C T/T CASH
  • Warranty Time:6 Months
  • LOADING PORT:Qing dao port/Tian jin port
  • Country Of Origin:China
Chat Online
Leave Message
  • Features
  • Technical Data
  • FAQ
  • Case
  • Certification
Description:

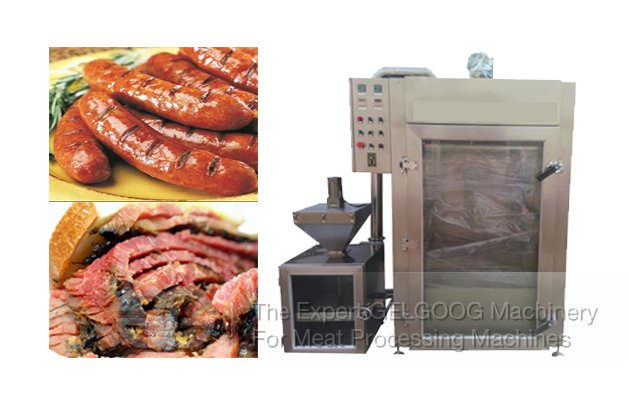

Smoke Oven For Sausage And Meat Includes Electric Heating And Steam Heating Two Types. It Can Make Smoked Chicken, Smoked Duck, Bacon, Smoked Tofu, Sausages, Meats And Smoked Salmon Etc.
Baking, Drying, Color Molding. Smoked Good Color, Taste Better. Quality Assurance, Technical Quality, Easy To Operate. After A Nice Smoked, Food Colored Well, There Is A Smoky Smell After Smoked, Not Greasy Feel, But Also To Achieve Environmental Effects, Completely Replaced The Traditional Smoked Furnace Method, Saving The Labor Of Workers, And To Improve Work Efficiency, But Also Enhances The Taste Of Food And Elasticity. It Is Mainly Used In Some Food Processing Factory, Food Shop, Restaurant, Etc.
Features:
1. PLC, Man-Machine Interface. Electromagnetic Valve Key Components Adopted Well-Known Imported Products
2. The Outside Steam Heating Or Electrical Heating Mode
3. The International Standard Thickness Insulation Wall Panels, Heat Resistance And Reliable. Inside And Outside All Adopt The 304 Wall Quality Stainless Steel Materials. Modular Structure. Food Grade Article Seal
4. Can According  The Customers' Requirements, Equipped With Efficient Automatic Cleaning System, Cleaning Procedures Can Be Set In Control System.
Structure Of Fish Smoking Oven:
This Smoke House Consist Of The Furnace,Heating System,Circulating Air System,Smoked System And Control System.
Model Type Capacity Power High Pressure Low Pressure Furnace Temperature Water Pressure  Trailer Size(Mm) Dimension(Mm) Weight
GGX-30 Electric 30KG 7.7kw -- <150°C -- 670*680*650 1070*900*1310 230KG
Steam 30KG 3.7kw 0.3-0.6Mpa 0.1-0.2Mpa <120°C 0.2Mpa 670*680*650 1070*900*1310 230KG
GGX-50 Electric 50KG 9.5kw -- <150°C -- 700*730*915 1200*1000*1680 330KG
Steam 50KG 4.0kw 0.3-0.6Mpa 0.1-0.2Mpa <120°C 0.2Mpa 700*730*915 1200*1000*1680 330KG
GGX-100 Electric 100KG 13kw -- <150°C -- 816*860*1150 1350*1050*1978
1700*1050*1978		 700KG
Steam 100KG 4.2kw 0.3-0.6Mpa 0.1-0.2Mpa <120°C 0.2Mpa 816*860*1150 1350*1050*1978
1700*1050*1978		 650KG
GGX-150 Electric 150KG 19.5kw -- <150°C -- 866*880*1250 1740*1100*2160 820KG
Steam 150KG 4.8kw 0.3-0.6Mpa 0.1-0.2Mpa <120°C 0.2Mpa 866*880*1250 1740*1100*2160 820KG
GGX-200 Electric 200KG 24.5kw -- <150°C -- 1000*1000*1380 1800*1200*2600 900KG
Steam 200KG 5.5kw 0.3-0.6Mpa 0.1-0.2Mpa <120°C 0.2Mpa 1000*1000*1380 1800*1200*2600 900KG
GGX-250 Electric 250KG 24.5kw -- <150°C -- 1100*1030*1840 1840*1350*3000 1200KG
Steam 250KG 7.5kw 0.3-0.6Mpa 0.1-0.2Mpa <120°C 0.2Mpa 1100*1030*1840 1840*1350*3000 1200KG
GGX-500 Electric 500KG 61kw -- <150°C -- 1100*1030*1840 1300*3200*3200
1940*2420*3200		 2200KG
Steam 500KG 13.5kw 0.3-0.6Mpa 0.1-0.2Mpa <120°C 0.2Mpa 1100*1030*1840 1300*3200*3200
1940*2420*3200		 2200KG
GGX-1000 Electric 1000KG 121kw -- <150°C -- 1000*1030*1840 3700*2500*3000
4650*1950*3000		 4000KG
Steam 1000KG 24.5kw 0.3-0.6Mpa 0.1-0.2Mpa <120°C 0.2Mpa 1000*1030

Q: What Is The Machine Material?
A: Stainless Steel

Q: How Does This Machine Heat?
A: Steam And Electric

Q: What Is This Machine Usage?
A: Bacon, Fish, Meat, Sausage Etc.

Q: Warranty Time
A: One Year.
