Packing Machine

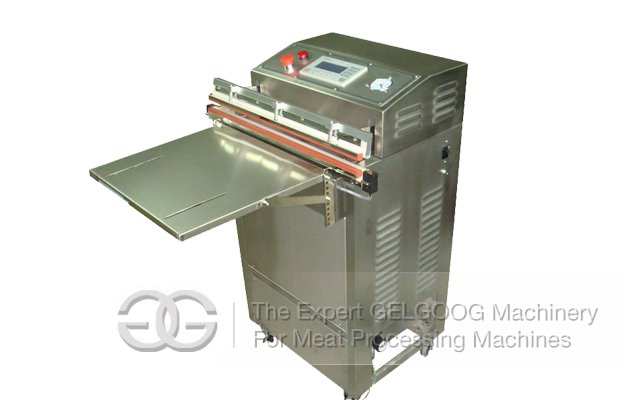

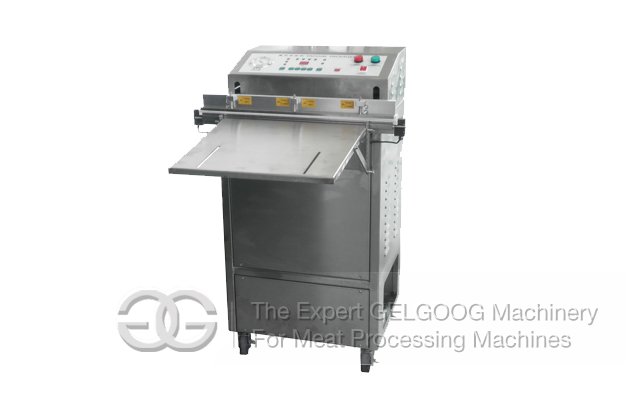

Automatic Vegetable External Vacuum Packing Machine
  • MOQ: 1/Sets
  • Brand:GELGOOG
  • Certification:CE
  • Supply Ability: Set/Sets Per Month
  • PAY METHOD:WEST UNION L/C T/T CASH
  • Warranty Time:6 Months
  • LOADING PORT:Qingdao Port/Shanghai Port, China
  • Country Of Origin:China
  • Features
  • Technical Data
  • FAQ
  • Case
  • Certification
Applicable:
It is used for packing foods, vegetables, medicine, special dried or preserved foods, aquatic products, electrical units etc.

Features:
Vacuuming time adjustable, easy operation,wide application,fast packing,low power consumption,supermarkets and home use,

Introduction:
This machine completes vacuuming, casing, and sealing in one single operation. It is used for packing foods, vegetables, medicine, special dried or preserved foods, aquatic products, electrical units etc, to keep the taste of foods fresh and dry, and to avoid oxidation, and mildew.

1.With complete functions, applicable to the packaging with different requirements, including vacuum
 packaging, and thepackaging by filling inert gas after vacuuming.

2.With automatic programmed control, vacuuming, gas flushing (optionally mounted), sealing and
 cooling operations can be completed at one time.

3.Non-chamber and nozzle design is used for the machine. The machine can automatically output the packaging bags after vacuuming (gas flushing) is completed. Excellent sealing performance,adjustable feeding and withdrawal speeds and high working efficiency.

4.With adjustable vacuuming time and heat sealing time, the machine is applicable to the sealing of a variety of films and compound films.
For the application purpose, the machine is classified into vacuum packaging machine and vacuum & gas flushing packaging machine, which are applicable to the demands of different packages.

Advantages.

1.Stainless steel construction make the machine longer lifetime.

2.T-shape silicone sealing strip and anodized aluminium sealing bar.

3.Easy operating system provide 9 memorized programe to seal different material or different thickness.

4.Maximum safety protection.

5.Small in size,which save lots of space.

6.this external vacuum packaging machine is used in food field,such as seafood, fruits, tea, salt,  soy products and so on, to prevent the oxidation and prolong shelf life.

7.Stainless operating platform just can be adjusted according to the thickness of the packing materials and not be limited to product appearance size, so for large parts or shaped items this machine is most suitable.

8.only pump air in packaging bag, fast speed(only 2 ~ 3 seconds to complete).

9. the sealing pressure is provided by variable air cylinder of large bore and has strong sealing pressure which
completely change the unstable phenomenon of traditional packaging and sealing .

Model GG-600S GG-600A
Voltage 220v,50Hz 220v,50Hz
Power 1.4kw 1.6kw
Vacuum Chamber size L(Unlimited)*W600mm*
H(Unlimited)
L(Unlimited)*W600mm*
H(Unlimited)
Packing Speed 1-4 pieces/Minute 1-4pieces/minute
Dimension  1060*680*1030mm 1060*680*1030mm
Weight  100kg 110kg
Main Configuration 1.Omron Contact Switch as well as Relay.
2.Indicator Light.
3.Circuit Board
4.Pump
5.A.C. Contactor
6.Solenoid Valve
1.PLC control programming
2.Vacuum Pump(non-oil pump)
3.Germany STEIMEX
4.Switch:Schneider
5.A.C Contactor
6.Cylinder
7.Display Text



no,yes
