Brine Injector
- Automatic Brine Injection Machine
-
- MOQ: 1 set/Sets
- Brand:GELGOOG
- Certification:CE
- Supply Ability: 100 sets /monthSet/Sets Per Month
- PAY METHOD:WEST UNION L/C T/T CASH
- Warranty Time:6 Months
- LOADING PORT:Qing dao port/Tian jin port
- Country Of Origin:China
- Features
- Technical Data
- FAQ
- Case

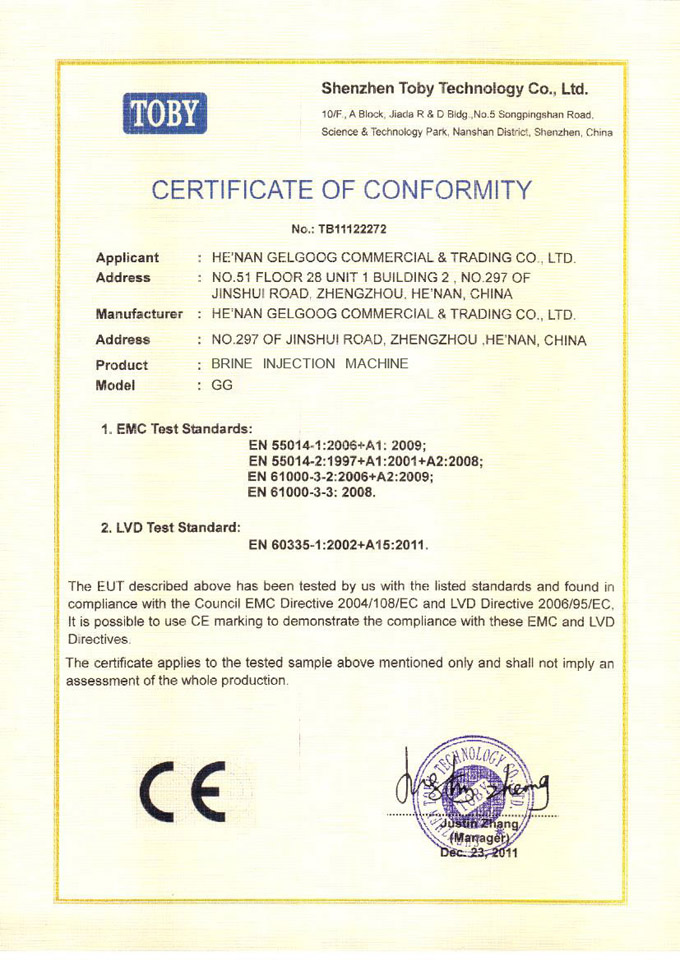

- Certification

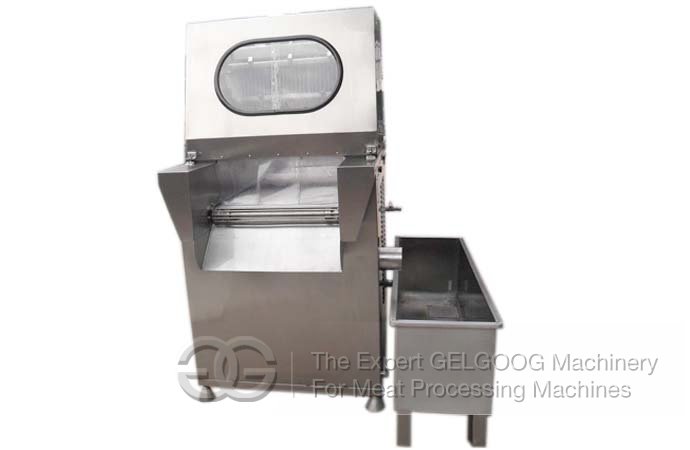

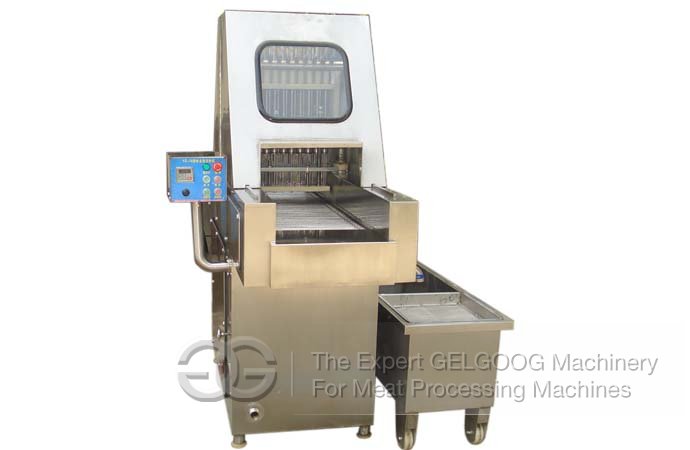

Automatic Brine Injection Machine
Saline injection machine is the salt water and accessories by saline injection, vacuum roll kneading, injecting the material liquid full curing meat, penetration,
loose muscle tissue structure, is advantageous to the myosin dissolution, and additives on the raw meat due to ionic strength enhancement function and role of
protein characteristics, injection preparation of aqueous solution can make the meat tenderizer, soft, and improve the meat production rate and improve meat
tenderness and flavor
It is used for injecting the brine and auxiliary materials fully into the meat, which can make the meat tenderizer and soft, and improve the grade of the meat
products and the production rate.
Saline injection machine is the salt water and accessories by saline injection, vacuum roll kneading, injecting the material liquid full curing meat, penetration,
loose muscle tissue structure, is advantageous to the myosin dissolution, and additives on the raw meat due to ionic strength enhancement function and role of
protein characteristics, injection preparation of aqueous solution can make the meat tenderizer, soft, and improve the meat production rate and improve meat
tenderness and flavor
It is used for injecting the brine and auxiliary materials fully into the meat, which can make the meat tenderizer and soft, and improve the grade of the meat
products and the production rate.
The step speed, step distance, the meat plate gap and injection pressure can be adjusted according to different technical requirements to make the pickling
liquid into the meat continuously and evenly in order to achieve the ideal injection effect.
The machine adopts stainless steel materials, the design is reasonable.Send meat chain can come clean, clean convenient, needle is arranged for single
needle tube, the automatic protection device, when hard hit a needle, needle automatically bounce, from being damaged, really up to the injection of meat, no
dead Angle.
liquid into the meat continuously and evenly in order to achieve the ideal injection effect.
The machine adopts stainless steel materials, the design is reasonable.Send meat chain can come clean, clean convenient, needle is arranged for single
needle tube, the automatic protection device, when hard hit a needle, needle automatically bounce, from being damaged, really up to the injection of meat, no
dead Angle.
| Model | GG-48 | GG-60 | GG-80 | GG-108 | GG-180 |
| Voltage(v) | 380 | 380 | 380 | 380 | 380 |
| Power(kw) | 4.1 | 4.1 | 5.1 | 6.2 | 7 |
| Capacity(kg/h) | 200-300 | 300-500 | 500-700 | 700-900 | 900-1000 |
| Injection Pressure(Mpa) | 0.45-0.9 | 0.45-0.9 | 0.45-0.9 | 0.45-0.9 | 0.45-0.9 |
| Injection Time | 15-40 | 15-40 | 15-50 | 15-50 | 15-50 |
| Injection Rate | 40-80% | 40-80% | 40-80% | 60-90% | 60-90% |
| Walking Speed | 40-70 | 40-70 | 40-70 | 40-70 | 40-70 |
| Dimension (mm) | 1350*750*1650 | 1550*880*1650 | 1550*1060*1720 | 1850*1350*1800 | 1950*1350*1850 |
| Weight(kg) | 250 | 320 | 320 | 430 | 520 |
1,ASK :what’s the working principle of automatic brine injection machine?
ANSWER :Use mechanical equipment inject the saline water into the meat,the brine is distributed evenly in the meat then keep the meat nutrition and taste better.
2,ASK :What’s the characteristic of automatic brine injection machine?
ANSWER :Safe and easy to operate
Stable and reliable performance
Big capacity
Low noise
failure rate<1%
3.ASK :How does the machine work?
ANSWER :Conveyor carry meat moving under the needle,conveyor stop moving,pressing plate press meat then the needles stab water into meat,continuous water flooding until reach the setting time,inject return and conveyor start moving
4,ASK :How many needles of the automatic brine injection machine?
ANSWER :80needles,120needles.We can also custom made the quantity of needles for you!
